Querying

Scope

Querying vocabularies stored in RDF using the SPARQL query language

Audience

Technical vocabulary users: programmers and analysts tasked with providing sophisticated extracts from vocabularies.

Outcome

Technical vocabulary users should get a feel for how to query vocabularies using SPARQL and have a list of some of the common queries to draw on.

SPARQL querying

Vocabularies using RDF as the data structure can be queried with SPARQL which is an SQL-like query language.

SPARQL can access any part of RDF data so it can be used to filter, join, reorder and convert vocabularies - everything.

SPARQL introduction

If you are unfamiliar with SPARQL, why not work through some of our SPARQL training:

https://github.com/Kurrawong/sparql-training-live

That training is a series of 4 modules that will take you right through all aspects of SPARQL.

It is also available for delivery as a paid course, see https://kurrawong.ai/services/training.

Example queries for SKOS vocabularies are given below.

How to query

If you are familiar enough with SPARQL to want to start querying vocabularies, you can apply the queries below, or write your own, and apply them to vocabularies in two main ways:

Query a system
Query files

Query a system

Use a UI

If your vocabularies are delivered online via system like Prez, it will have a "SPARQL Endpoint" User Interface which will allow you to lodge queries against the content.

Here is the KurrawongAI demo Prez instance's SPARQL Endpoint:

https://data.kurrawong.ai/sparql

Try running this query to list all vocabularies:

PREFIX skos:<http://www.w3.org/2004/02/skos/core#>

SELECT ?cs ?label
WHERE {
  ?cs
    a skos:ConceptScheme ;
    skos:prefLabel ?label
}
ORDER BY ?label

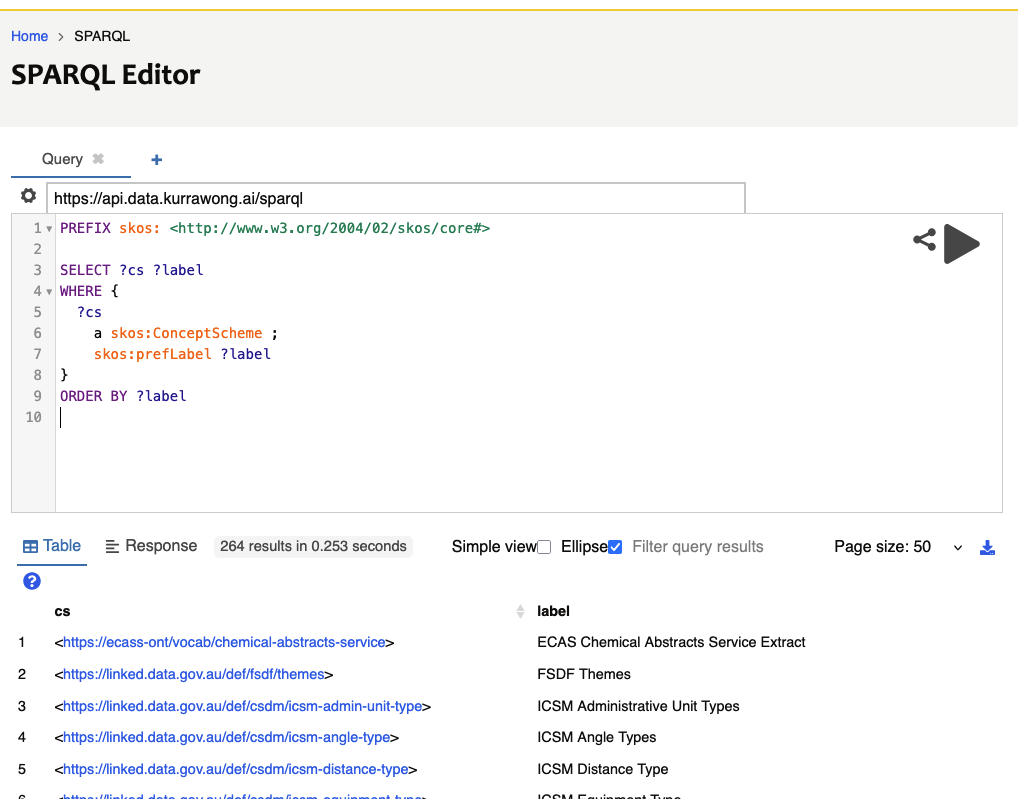

You should see quite a few vocabularies (250+) that we've worked on listed, something like this:

Another option is to load all your vocabulary files into an RDF database system such as GraphDB or, if using cloud computing, AWS' Neptune. These all offer SPARQL endpoints.

Use an API

Most systems that provide a SPARQL Endpoint also make that endpoint available as an Application Programming Interface for automated use.

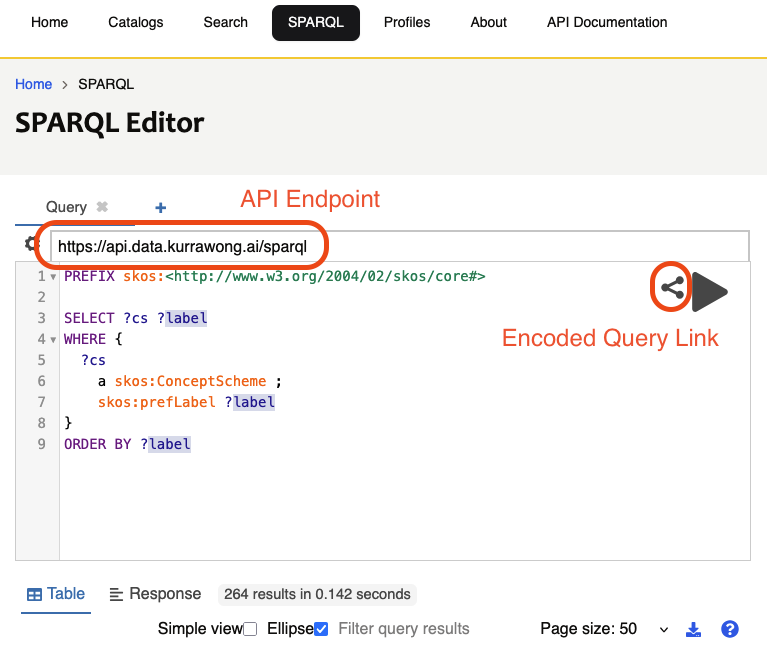

For the system at https://data.kurrawong.ai/sparql, the API endpoint is indicated per-query:

With the query above loaded, as per the image above, the Encoded Query Link will give you options to call that query directly as a URL or as a cURL command, both with the query URL-encoded:

curl https://api.data.kurrawong.ai/sparql --data query=PREFIX%20skos%3A%3Chttp%3A%2F%2Fwww.w3.org%2F2004%2F02%2Fskos%2Fcore%23%3E%0A%0ASELECT%20%3Fcs%20%3Flabel%20%0AWHERE%20%7B%0A%20%20%3Fcs%20%0A%20%20%09a%20skos%3AConceptScheme%20%3B%0A%09skos%3AprefLabel%20%3Flabel%20%0A%7D%0AORDER%20BY%20%3Flabel -X POST

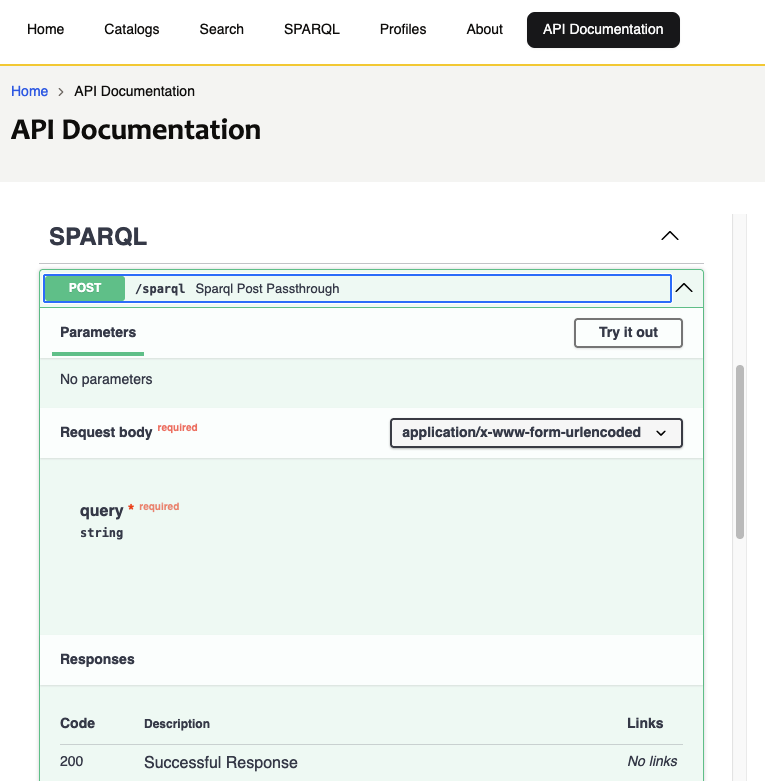

Prez systems, and many others featuring SPARQL endpoints, also indicate their API endpoints using OpenAPI methods:

Query files

To query a collection of files containing vocabularies, you will need to either put the file content in a query system, such as our online SPARQL query facility, or use a desktop tool that allows queries to be run against files.

Our kurra Python package can be used as a command line application that allows queries in files to be posed to RDF data in files:

kurra sparql DATA_FILE.ttl QUERY_FILE.sparql

Common vocab queries

Some common SPARQL queries for SKOS vocabularies are:

List all Concepts

This query lists all the Concepts in the Concept Scheme (vocabulary) "FSDF Themes", identified by the IRI <https://linked.data.gov.au/def/fsdf/themes> by the relation skos:inScheme and selects their IRI and label.

PREFIX skos: <http://www.w3.org/2004/02/skos/core#>

SELECT ?c ?label
WHERE {
    ?c
        a skos:Concept ;
        skos:prefLabel ?label ;
        skos:inScheme <https://linked.data.gov.au/def/fsdf/themes> ;
    .
}
ORDER BY ?label

If you leave out the line skos:inScheme <https://linked.data.gov.au/def/fsdf/themes> ;, you will get all the concepts stored in a system, from all vocabularies, which may or may not be helpful.

Filter Concepts

Get all the concepts containing 'Parcel' in their preferred label:

PREFIX skos: <http://www.w3.org/2004/02/skos/core#>

SELECT ?c ?label
WHERE {
    ?c
        a skos:Concept ;
        skos:prefLabel ?label ;
        skos:inScheme <https://linked.data.gov.au/def/fsdf/themes> ;
    .

    FILTER (CONTAINS(?label, "Parcel"))
}
ORDER BY ?label

When run at https://data.kurrawong.ai/sparql, this query should return two results: "Land Parcel Boundaries" and "Land Parcel and Property".

List Top Concepts

Top Concepts are the top elements in a vocabulary's Concept Hierarchy. All vocabs worked on by KurrawongAI list Top Concepts directly from the vocabulary:

PREFIX skos: <http://www.w3.org/2004/02/skos/core#>

SELECT ?c ?label
WHERE {
    ?cs skos:hasTopConcept ?c .

    ?c
        a skos:Concept ;
        skos:prefLabel ?label ;
        skos:inScheme <https://linked.data.gov.au/def/fsdf/themes> ;
    .
}
ORDER BY ?label

When run at https://data.kurrawong.ai/sparql, this query should return just one result: "Spatial".

Note

Not all SKOS vocabularies indicate Top Concepts directly as a property of the vocabulary (?cs skos:hasTopConcept ?c). Some indicate it per-Concept (?c skos:topConceptOf ?cs). If this is the case - perhaps the query above returns no values - then use this variant:

PREFIX skos: <http://www.w3.org/2004/02/skos/core#>

SELECT ?c ?label
WHERE {
    ?cs skos:hasTopConcept ?c .

    ?c
        a skos:Concept ;
        skos:prefLabel ?label ;
        skos:inScheme <https://linked.data.gov.au/def/fsdf/themes> ;
        skos:topConceptOf ?cs ;
    .
}
ORDER BY ?label

This will also vield the same results as above when run at https://data.kurrawong.ai/sparql.

List Children Concepts

There are two possible ways concepts may be indicated as being children of a particular concept:

children are narrower than the parent
the parent is broader than the children

Different vocabularies prefer one or the other approach and some vocabulary systems implement both. The following query will check both:

PREFIX skos: <http://www.w3.org/2004/02/skos/core#>

SELECT DISTINCT ?c ?label
WHERE {
    BIND (<https://linked.data.gov.au/def/fsdf/themes> AS ?vocab)
    BIND (<https://linked.data.gov.au/def/fsdf/themes/spatial> AS ?parent)

    { ?parent  skos:narrower ?c }
    UNION
    { ?c skos:broader ?parent }

    ?c
        a skos:Concept ;
        skos:prefLabel ?label ;
        skos:inScheme ?vocab ;
    .
}
ORDER BY ?label

Just replace the values for the Vocab and the parent Concept as needed.

Concepts within Collections

Sometimes vocabularies rgroup Concepts within Collections. To do this, the Collection indicates Concepts via the skos:member predicate:

PREFIX skos: <http://www.w3.org/2004/02/skos/core#>

SELECT ?c ?label
WHERE {
    <http://resource.geosciml.org/classifier/cgi/waste-storage>
        skos:member ?c .

    ?c
        a skos:Concept ;
        skos:prefLabel ?label ;
        skos:inScheme ?vocab ;
    .
}
ORDER BY ?label

Get the top 2 levels of a vocab

Some vocabs have "levels" that mean something, that is Concepts in a hierarchy where the hierarchy distance, counting from the top, is significant. Some other vocabs are large, and sometimes we only want the top parts.

To retrieve Concepts in the top 2 levels of a vocab, but not those in levels 3+:

PREFIX skos: <http://www.w3.org/2004/02/skos/core#>

SELECT DISTINCT ?c ?label
WHERE {
    BIND (<http://resource.geosciml.org/classifierscheme/cgi/2023.11/mineral-deposit-model> AS ?vocab)

    { ?c skos:topConceptOf ?vocab }
    UNION
    { ?c skos:broader/skos:topConceptOf ?vocab }

    ?c
      a skos:Concept ;
         skos:prefLabel ?label ;
         skos:inScheme ?vocab ;
    .
}
ORDER BY ?label

This query asks for all Concepts that are Top Concepts of the vocabulary and all those that have those Top Concepts as direct parents. If we wanted 3 levels, we could do this:

PREFIX skos: <http://www.w3.org/2004/02/skos/core#>

SELECT DISTINCT ?c ?label
WHERE {
    BIND (<http://resource.geosciml.org/classifierscheme/cgi/2023.11/mineral-deposit-model> AS ?vocab)

    { ?c skos:topConceptOf ?vocab }
    UNION
    { ?c skos:broader/skos:topConceptOf ?vocab }
      UNION
    { ?c skos:broader/skos:broader/skos:topConceptOf ?vocab }

    ?c
      a skos:Concept ;
         skos:prefLabel ?label ;
         skos:inScheme ?vocab ;
    .
}
ORDER BY ?label

This just adds in an ask for those Concepts that have the Top Concepts as grandparents.

There is a method to search for Concepts at a given hierarchy level too, but it's tricky! Just Contact Us if you really need to do this!

Get concepts that have null values

Some Concepts don't have values for all possible properties, for example skos:altLabel. To get all those Concepts that do as well as those that don't we use an OPTIONAL clause:

PREFIX skos: <http://www.w3.org/2004/02/skos/core#>

SELECT *
WHERE {
    ?c
        a skos:Concept ;
        skos:prefLabel ?label ;
        skos:inScheme <https://data.idnau.org/pid/glossary> ;
    .

    OPTIONAL {
      ?c skos:altLabel ?alt_label .
    }
}
ORDER BY ?label

If run at https://data.kurrawong.ai/sparql, the above query will return 34 Concepts, some of which have alt labels, some of which don't.

List all vocabularies

If you have a system that stores multiple vocabularies, characterised as SKOS Concept Schemes, this query will list them all:

PREFIX skos: <http://www.w3.org/2004/02/skos/core#>

SELECT ?c ?label
WHERE {
    ?c
        a skos:ConceptScheme ;
        skos:prefLabel ?label ;
    .
}
ORDER BY ?label

Try this on the KurrawongAI Prez server: https://data.kurrawong.ai/sparql
