Introduction to Vocabularies

Scope

This module is in intended to introduce vocabularies and to provide initial steps and guidance on starting a vocabulary with minimum elements. This module will also explain the rationale for vocabularies within the context of Knowledge Graph data management.

Audience

The content is primarily targeted to managers and users (vocab owners and contributors) of established vocabularies. It is assumed that learners have some experience with using document management or version control systems, and general familiarity with data management in practice.

Outcome

These modules are intended to provide an introduction to vocabulary creation and management, and provide initial guidance on best practice for administration and management of vocabularies within part of broader data management systems. It is recommended that users independently access other resources (see references here), as part of ongoing independent learning.

💡 Identifies troubleshooting tips, common errors and potential issues.

🚧 Exercises

An Introduction to Vocabularies

As languages speakers, we have developed the categorization of "things" as a means to both understand and communicate our experience of the world. The sheer volume of data that we interact with has necessitated approaches to using our shared understanding of language and naming. Particularly when using information as part of large-scale data holdings, it can be beneficial to encourage consistency through the use of controlled vocabularies.

When sharing information across diverse groups of people (or perhaps software applications), there is need for a common understanding of exactly what is being referred to. This is where controlled vocabularies provide a structure from which terminology applied to information can be driven from an agreed stated understanding of that concept. That understanding can be a definition for human understanding, or a machine-readable unique identifier for machine processing.

Whatever size and shape, the vocabularies mentioned in these modules are designed for describing data and content. Vocabularies can be used to describe (or catalogue) content in information systems. Vocabularies can also optimise search engines and provide the basis for navigation in information systems, making it easier for users to find content and data.

Vocabulary types

In this section we will introduce some common vocabulary types. By introducing simple and more complex vocabulary examples we will introduce some important vocabulary features.

Glossary

... defining terms

Glossary are a very common form of vocabulary found in many print and web resources. A glossary is a list of concepts, expressed by natural language terms (we will refer to terms and labels interchangeably) with added definitions.

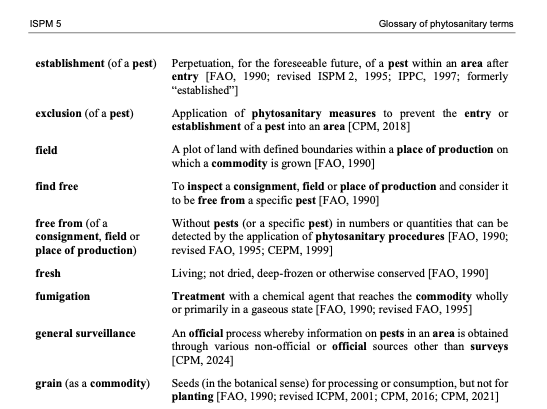

Glossary Picture

Each concept in a Glossary has at least one label and one definition. Some glossaries include see references that direct a user to a preferred term. This equivalence mapping is a common feature in more complex vocabulary types such as in a thesaurus that we will look at below. But first we will look at vocabularies that include hierarchy relationships.

Taxonomies

... a very short history

Taxonomies are vocabularies with hierarchical relationships between concepts. Conventionally, we might say that concept A is broader than concept B, when the all-some rule apples: All B's are A, and some A's are B. For example, all apples are fruit, and some fruit are applies. Therefore, fruit is broader than apples.

Modern taxonomies that are used to organise and retrieve data owe their heritage to two disciplines: biology, or the taxonomy of living things, featuring familiar concepts of class, family, genus, species etc..., and financial classifications, where concepts are typically categorised as either function, activity of transaction.

%% Title: **Financial classification**
graph TD
subgraph "Financial classification"
    F[Function]
    T1[Transaction A]
    T2[Transaction B]
    A1[Activity 1]
    A2[Activity 2]
    A3[Activity 3]

    F --> T1
    F --> T2
    T1 --> A1
    T1 --> A2
    T2 --> A3
end
The definition, or meaning of a given term is given, in part, by its relationship to broader and narrower terms. For example, we have a clearer understanding of what crane means if it has a broader relationship with birds (and not construction equipment).


%% Title: Taxonomy of living things
graph TD
subgraph "Taxonomy of living things"
    F[Family]
    G1[Genus A]
    G2[Genus B]
    S1[Species 1]
    S2[Species 2]
    S3[Species 3]

    F --> G1
    F --> G2
    G1 --> S1
    G1 --> S2
    G2 --> S3
end
    classDef green fill:#90ee90,stroke:#333,stroke-width:2px;
class F,G1,G2,S1,S2,S3 green;

We will see below in Vocabularies in the context of knowledge graphs how the broader / narrower relationship between concepts can improve search and extraction functions in data where vocabularies are used to enrich data.

Thesaurus

... a (more) complete picture

The modern retrieval thesaurus combines the structure of a taxonomy with an additional non-hierarchical relationship and also synonym control. Thesauri establish hierarchy, association and equivalence between terms. Each can be expressed using the Simple Knowledge Organization System (SKOS) properties skos:broader / skos:narrower; skos:relation; and skos:prefLabel / skos:altLabel (W3C, 2009).

graph TD
    A[Concept A]
    B[Concept B]
    C[Concept C]
    D[Concept D]
    S[Synonym of A]

    %% Broader / Narrower relationships
    A -- "skos:narrower" --> B
    B -- "skos:broader" --> A

    %% Associative (related) relationship
    A <-- "skos:related" --> C

    %% Synonym relationship (using skos:altLabel)
    A -- "skos:altLabel" --> S


    %% Additional hierarchical relationship for illustration
    C -- "skos:narrower" --> D
    D -- "skos:broader" --> C

💡 Tip: the skos:related property is most useful for relating disparate concepts in deep, complex hierarchies. Use skos:related sparingly - don't relate everything to everything!

We will look at SKOS properties in more detail in the Properties section.

Vocabularies in knowledge graphs

Thought of as an interconnected system of data classes, a knowledge graphs may involve vocabularies as an additional class that will connect with some or all other classes. In a knowledge graph, a vocabulary concept can be modelled as just another class.

One function that vocabularies serve is to supplement and fill semantic gaps in data relations. In the example below, classes A, B an C are each related to each other in some way. Class D is not related to other classes. A concept from a vocabulary is also included, and has relationships to classes A, B and C.

graph LR;
    classDef concept fill:#f9f1a5,stroke:#b59a00;
    classDef default fill:#dae8fc,stroke:#6c8ebf;

    4["CLASS C"];
    7["CONCEPT A"]:::concept;
    8["CLASS B"];
    9["CLASS A"];
    10["CLASS D"];

    4 -- "relation" --> 7;
    4 -- "relation" --> 8;
    8 -- "relation" --> 7;
    9 -- "relation" --> 7;
    9 -- "relation" --> 8;

The relationships between classes and concepts is often of a subject nature - that is to say the class instance is about the concept.

graph LR;
    classDef concept fill:#f9f1a5,stroke:#b59a00;
    classDef default fill:#dae8fc,stroke:#6c8ebf;

    4["CLASS C"];
    7["CONCEPT A"]:::concept;
    8["CLASS B"];
    9["CLASS A"];
    10["CLASS D"];

    4 -- "subject" --> 7;
    4 -- "relation" --> 8;
    8 -- "subject" --> 7;
    9 -- "subject" --> 7;
    9 -- "relation" --> 8;

Now we will look at a domain example using possible interrelationships between spatial data classes, focusing on roads.

graph LR;
    classDef concept fill:#f9f1a5,stroke:#b59a00;
    classDef default fill:#dae8fc,stroke:#6c8ebf;

    4["Road types"];
    7["One Way"]:::concept;
    8["Maintainers"];
    9["Lane counts"];
    10["Seasonality"];

    4 -- "subject" --> 7;
    4 -- "relation" --> 8;
    8 -- "subject" --> 7;
    9 -- "subject" --> 7;
    9 -- "relation" --> 8;

The concept One Way comes from Road directions vocabulary, where the concept One Way From To may be defined as a skos:narrower concept.

graph LR;
    classDef concept fill:#f9f1a5,stroke:#b59a00;
    classDef default fill:#dae8fc,stroke:#6c8ebf;

    4["Road types"];
    7["One Way"]:::concept;
    8["Maintainers"];
    9["Lane counts"];
    10["Seasonality"];
    11["One Way From To"]:::concept;

    4 -- "subject" --> 7;
    4 -- "relation" --> 8;
    8 -- "subject" --> 7;
    9 -- "subject" --> 7;
    9 -- "relation" --> 8;
    7 -- "narrower" --> 11;

Let's assume that the Seasonality class contains data profiled with the One Way From To directional roads concepts. So there is also a relationship with the skos:narrower concept provided in the vocabulary. This hierarchy relationship in the vocabulary then provides a bridge between classes of information.

graph LR;
    classDef concept fill:#f9f1a5,stroke:#b59a00;
    classDef default fill:#dae8fc,stroke:#6c8ebf;

    4["Road types"];
    7["One Way"]:::concept;
    8["Maintainers"];
    9["Lane counts"];
    10["Seasonality"];
    11["One Way From To"]:::concept;

    4 -- "subject" --> 7;
    4 -- "relation" --> 8;
    8 -- "subject" --> 7;
    9 -- "subject" --> 7;
    9 -- "relation" --> 8;
    7 -- "narrower" --> 11;
    10 -- "subject" --> 11;

Because of this relation between concepts in the vocabulary, it's possible to make an inference that connects classes that were previously unrelated, such as between Lane counts data and Seasonality data.

graph LR;
    classDef concept fill:#f9f1a5,stroke:#b59a00;
    classDef default fill:#dae8fc,stroke:#6c8ebf;

    4["Road types"];
    7["One Way"]:::concept;
    8["Maintainers"];
    9["Lane counts"];
    10["Seasonality"];
    11["One Way From To"]:::concept;

    4 -- "subject" --> 7;
    4 -- "relation" --> 8;
    8 -- "subject" --> 7;
    9 -- "subject" --> 7;
    9 -- "relation" --> 8;
    7 -- "narrower" --> 11;
    10 -- "subject" --> 11;
    9 -. "relation" .-> 10;
Let's put this into a narrative form:

We know that some roads are closed on a seasonal basis, but we don't know what portion of these are one lane roads. But we do have data about the seasonality of 'One Way From Two' roads, also called 'One way with vector' roads. Because these roads are defined as a type of One Way road (defined as skos:narrower), we can infer information about seasonal road closures for one lane roads.

Vocabulary properties

Vocabularies contain, as a minimum: preferred labels, definitions and identifiers

We have already introduced concepts and their relation properties to other concepts. In this section we will look at more concept properties, including properties that are required for validation in vocabulary quality standards.

Minimum properties: prefLabel, definition and identifier

To comply with VocPub profile (AGLDWG, n.d.), each concept must have at least:

  • a skos:prefLabel which is the main way that we say and understand the concept;
  • a skos:definition - a short note that describes the concept;
  • an Identifier - a unique way of distinguishing the concept from other concepts

🚧 Exercise: 0pen, edit and save a vocabulary

These modules will include a number of editing exercises that use the VocEdit tool and the Pest Risk Pathway vocabulary (PRP). The PRP is an un-published vocabulary, hosted by Kurrawong.ai for training and testing purposes. In this exercise we will add a new concept; a concept preferred label; a concept definition; and a concept identifier.

Technical requirements: Chrome browser is needed to access the VocEdit tool.

  1. Go to pestRiskPath.ttl
  2. Save the file to your local directory
  3. Open Chrome (if not already)
  4. Go to VocEdit
  5. Select Project > Open
  6. Select pestRiskPath.ttl from your local directory
  7. Select + Create concept
  8. Open a new tab and go to UUID Generator
  9. Copy the UUID
  10. Paste the UUID in the Local Name field > Create
  11. Annotations - preferred Label > Add a literal value with a language tag
  12. Add "Wind dispersal" > Save (tick icon)
  13. Annotations - definitions > Add a literal value with a language tag
  14. Add "Dispersal of pests by wind" > Save (tick icon)
  15. Concept scheme relationships - inScheme > Add an IRI value
  16. Type "P" - Pest Risk Pathway will return - select this
  17. Concept scheme relationships - topConceptOf > Add an IRI value
  18. Type "P" - Pest Risk Pathway will return - select this
  19. Project > Save

The pestRiskPathway.ttl will now be updated in your local directory, with the new concept "Wind dispersal" added.

Broader / Narrower

We have already introduced the skos:broader and skos:narrower relationships in the sections above on taxonomies and thesaurus vocabularies.

Depending on the type and complexity of a vocabulary, there may be a requirement that all concepts are related to another concept via skos:broader property. In a taxonomy or thesaurus vocabulary project, a concept that does not have a skos:broader concept may be considered an orphan, unless it is a topConcept. As far as the SKOS standard is concerned, there is no need for all (or any) concepts to be arranged in a hierarchy. In some cases a vocabulary will be mostly flat with selected concepts in narrower relationships to broader concepts.

If a skos:Concept does not have a skos:broader property, the VocPub profile requires that it must reference the relevant skos:ConceptScheme IRI with the skos:topConcept property.

Tip: Broader and narrower relationships are reciprocal - that is, if A is broader than B, then B is narrower than A. For example:

  • Dynamic land cover broader Land cover and land use

  • Land cover and land use narrower Dynamic land cover

  • Apples broader Pomme fruit

  • Pomme fruit narrower Apples

  • Hospitals narrower Private hospitals

  • Private hospitals broader Hospitals

Arranging concepts into a hierarchy supports discovery via:

  • Search expansion - a search system can add results that match narrower concepts of a search term. For example a search for Granitoid would return resources about granitoid OR granite
  • Navigation - top-down navigation or breadcrumb links can be launched in an interface using broader/narrower relationships. For example, clicking on Pomme fruit launches a list of links to apples, pears and quinces

In a vocabulary, it's possible to keep adding narrower relationships by creating more and more specific concepts. For example, a catalogue that is about horticulture probably needs a vocabulary with more specific (narrower) concepts than just apples (e.g. Kiku Fuji).

💡 Tip: Only add narrower concepts that you would expect to be used to describe content in a catalogue, and distinguish that content from others, with that concept. Don't make a vocabulary hierarchy very deep with specific concepts just because you can!

🚧 Exercise: add broader concept relations

In this exercise we will add a broader relationship between two concepts. Note that once a concept has a broader relationship, it can no longer be regarded as a 'top concept' and we will remove the top concept statement accordingly.

  1. Go to VocEdit in Chrome
  2. Project > Open pestRiskPath.ttl from your local directory
  3. Select "Spore dispersal" from the left-hand list of concepts
  4. Concept relationships - Broader > Add an IRI value
  5. Type "Hos" - "Host plants" will return - select this
  6. Select tick to save
  7. Concept scheme relationships - topConceptOf >
  8. Select three dots > Delete
  9. Project > Save

This change optimises the SKOS model by applying a broader relationship between concepts that are conceptually broader and narrower. In a retrieval system we might expect a query for datasets about host plants as pest vectors to return a resource about Spore dispersal. The skos:broader relation support such an inference.

Alternative labels

Each concept must have at least one Preferred label (skos:prefLabel), based on the word or phrase that best describes the concept. We often use different terms to mean the same thing - the skos:prefLabel should be the term that is used most frequently, or understood and used by most expected users of a system or catalogue.

In addition, each concept may have one ore more Alternate labels (skos:altLabel). It's a good idea to add one or more altLabel to a concept so that it can be found in different ways. A concept can have any number of alternate labels, provided they are similar enough to the common understanding of the concept.

💡 Tip: when adding a skos:altLabel, ask this question: If I searched with a preferred label, and found some information matching an alternative label in the text, would I be satisfied by the search result?

Here are some common scenarios where we might need to choose between preferred and alternative labels:

Common vs Scientific terms

Connect scientific or technical names with common names. For example:

  • Red imported fire ant skos:altLabel Solenopsis invicta
  • Boghead Coal skos:altLabel Torbanite
  • Spore dispersal skos:altLabel Sporulation

Superseded terms

Even if a term is no longer used in recent content, users may still search a catalogue using superseded language. Storing superseded terms as alternative labels helps to group content that contains antiquated language with content written in current language. For example:

  • Aeolian Sand skos:altLabel Eskimo Sand
  • Utility hole skos:altLabel Manhole

Acronyms vs phrases

In general, an acronym or initialism should be managed as an skos:altLabel; example:

  • Greenhouse gasses skos:altLabel GHG

An exception is when the acronym is better known or more frequently used. For example:

  • TNT skos:altLabel Trinitrotoluene
  • CSIRO skos:altLabel Commonwealth Scientific and Industrial Research Organisation

Official vs common language

Use an altLabel to connect official or technical language with natural language. For example:

  • Bi-directional skos:altLabel Two way
  • Alcohol-impaired driving skos:altLabel Drink-driving

🚧 Exercise: add alternative labels

In this exercise we will add an alternative label to a concept. You will need to add the skos:altLabel property to VocEdit as it is not included in the default form.

  1. Go to VocEdit in Chrome
  2. Project > Open pestRiskPath.ttl from your local directory
  3. Select "Spore dispersal" from the left-hand list of concepts
  4. Add a new predicate > Properties > Add new predicate
  5. Add a new predicate > http://www.w3.org/2004/02/skos/core#altLabel > Add
  6. Select Properties - altLabel (the field you just created)
  7. Add "Sporulation" > Save (tick icon)
  8. Project > Save

Top Concepts

If a skos:Concept does not have a skos:narrower relationship, it is automatically assumed to be a skos:topConceptOf a skos:ConceptScheme and must be declared as such.

A concept may be moved out of the

Concept Scheme

A Concept Scheme is some metadata about the vocabulary as a whole - the vocabulary title (skos:prefLabel), a definition (skos:definition), and a unique identifier are minimum requirements. All vocabularies must have a Concept Scheme, and it should include:

  • an Identifier - create an IRI following the same pattern as the IRIs for concepts. For the suffix, instead of a concept ID, add a Concept scheme ID. This may be the name of the Concept scheme (the vocabulary), e.g.: - https://linked.data.gov.au/def/road-types ... where Road types is the name of the concept scheme.

  • a Preferred label - the same property that is used for a Concept. Use a Preferred label for the name or title of the vocabulary (this may also be used for the Concept Scheme ID)

  • a Definition - a definition of the Concept Scheme. Use plain text only but paragraphs may be separated by newlines. Also used for Concepts
  • a Created date. When the Concept Scheme was first created. This might be automatically created by a vocabulary editor
  • a History note - a note on the origin or history of a vocabulary - such as how or from what it was generated.

🚧 Exercise: edit a concept scheme

We will continue to edit the Pest Risk Pathway vocabulary, but this time we will edit the concept scheme which is the metadata about the vocabulary as a whole.

  1. Go to VocEdit in Chrome
  2. Project > Open pestRiskPath.ttl from your local directory
  3. Select Pest Risk Pathway from under Concept Scheme in the left-hand panel
  4. Definition > Add a literal value with a language tag
  5. Add "A vocabulary describing various structures, modes and activities that introduce unwanted pests, weeds and diseases." > Save (tick icon)
  6. Project > Save

Summary

In this module we have introduced vocabularies - different types and how they are useful. We have also used a vocabulary editing tool to create the minimum elements for a concept and a concept scheme.
